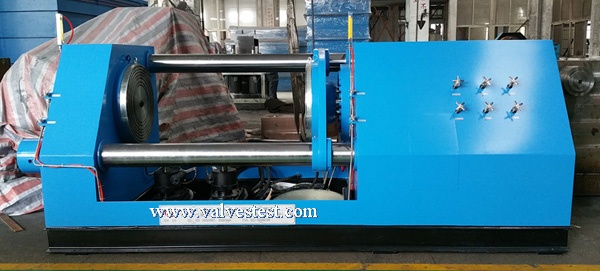

Horizontal Valve Test Bench
|
Previous:
Horizontal Valve Test Bench
Next:
Horizontal Valve Test Bench
Model: YFB-DY600
Categories:
Horizontal Valve Test Bench
»
Description:
Hydraulic drive to press blind flanged at the end of high pressure valve to have a performance test.
It is suitable for flanged and none-flanged end type valve, especially for none-flanged valve.
Just like welded groove type high pressure ball valve etc.
It is suitable for flanged and none-flanged end type valve, especially for none-flanged valve.
Just like welded groove type high pressure ball valve etc.
Test Range from DN300-600mm, test pressure up to 320 bar.
Test Pressure Range:
Main Technical Parameters: ( * can be designed as customer's request)
| Model | YFB-D600 | |
|
Allowable test DN |
DN/mm | 300-600 |
| Allowable Test valve structure length | *Minimum | ≥356mm |
| *Maximum | ≤1232mm | |
| Distance between two sides blinds |
*Minimum | ≥325mm |
| *Maximum | ≤1370mm | |
| Hydraulic system |
Range of oil pump pressure | 0-6.3MPa |
| Flow | 40L/min | |
| Hydraulic pressure increase | 3.0-31.5MPa | |
| Power |
*Voltage | 380V |
| *Frequency | 50Hz | |
| Three Phase | ||
| Motor | Rate of work | 5.5Kw |
| Number of Poles | 6P | |
| Dimensions for Reference | Clamp Part (L*W*H) | 4500*1700*1600mm |
| Operation Part (L*W*H) | 1200*800*1800mm | |
| Weight for Reference | N.W 7500KG | G.W 8000KG |
Test Pressure Range:
| Test DN (mm) | 300 | 350 - 400 | 450 - 500 | 600 |
| Max.Test Pressure (bar) | 400 | 240 | 160 | 100 |
We also can design different Max.test pressure as customer's request.
