Horizontal Valve Test Bench
|
Previous:
Horizontal Valve Test Bench
Next:
Horizontal Valve Test Bench

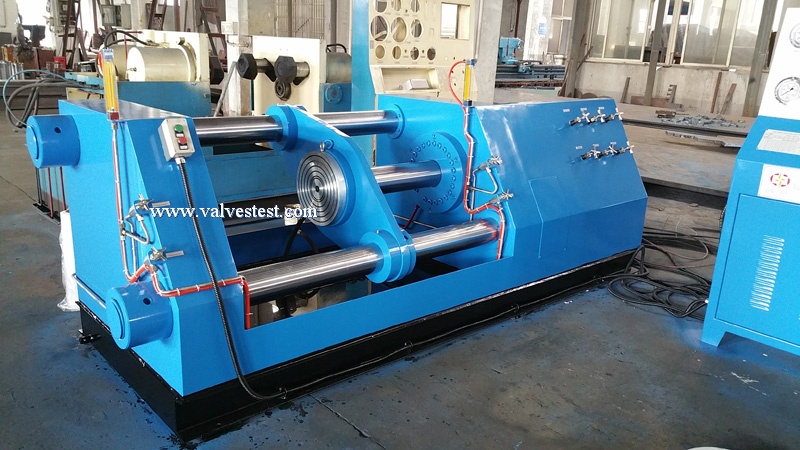

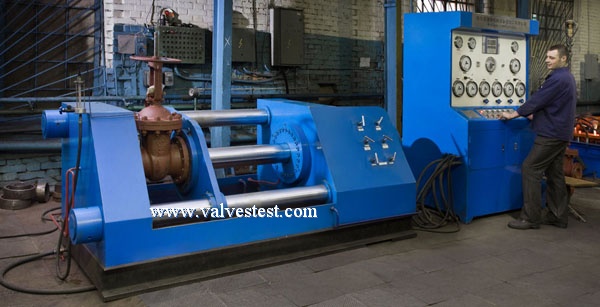

Model: YFB-DY300
Categories:
Horizontal Valve Test Bench
»
Description:
Hydraulic drive to press blind flanged at the end of high pressure valve to have a performance test.
It is suitable for flanged and none-flanged end type valve, especially for none-flanged valve.
Just like welded groove type high pressure ball valve etc.
Just like welded groove type high pressure ball valve etc.
Test Range from DN80-300mm, test pressure up to 630 bar.
Test Pressure Range:
Main Technical Parameters: ( * can be designed as customer's request)
| Model | YFB-D300 | |
| Allowable test DN |
DN/mm | 80-300 |
| Allowable Test valve structure length | *Minimum | ≥203mm |
| *Maximum | ≤991mm | |
| Distance between two sides blinds |
*Minimum | ≥180mm |
| *Maximum | ≤1100mm | |
| Hydraulic system |
Range of oil pump pressure | 0-6.3MPa |
| Flow | 25L/min | |
| Hydraulic pressure increase | 3.0-31.5MPa | |
| Power |
*Voltage | 380V |
| *Frequency | 50Hz | |
| Three Phase | ||
| Motor | Rate of work | 3.0Kw |
| Number of Poles | 6P | |
| Dimensions for Reference | (L*W*H) | 3500*1300*1800mm |
| Weight for Reference | N.W 3200KG | G.W 3700KG |
Test Pressure Range:
| Test DN (mm) | 80 - 150 | 200 | 250 | 300 |
| Max.Test Pressure (bar) | 630 | 480 | 400 | 240 |
We also can design different Max.test pressure as customer's request.
