Products
Vertical Valve Test Bench
 |
Previous:
Vertical Valve Test Bench
Next:
Model: YFB-L100
Categories:
Vertical Valve Test Bench
»
Description:

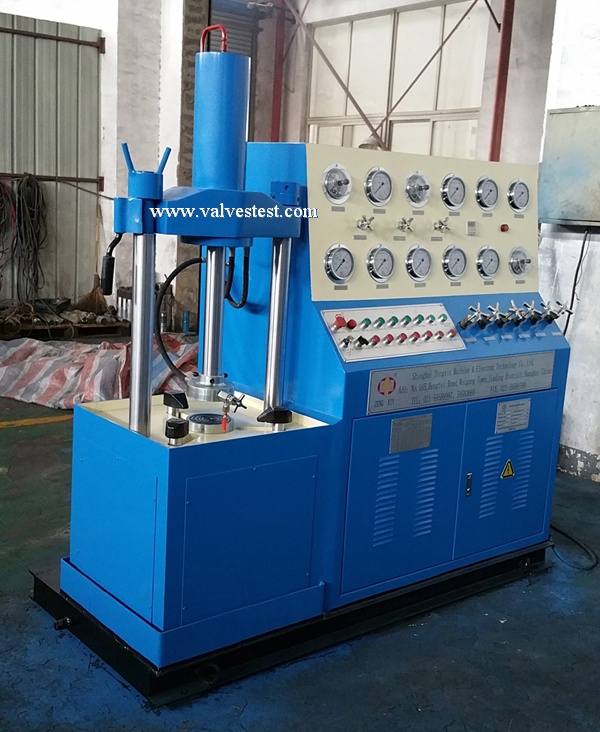

Vertical type hydraulic valve test bench both has impaction cylinder on up side and claws in bottom side.
So it can test for none-flange valve and flange valve.
Test Range from DN15-100mm, test pressure up to 480 bar.
Test Pressure Range:
Test Range from DN15-100mm, test pressure up to 480 bar.
Main Technical Parameters: ( * can be designed as customer's request)
| Model | YFB-L100 | |
|
Allowable test DN |
DN/mm | 15-100 |
| Allowable test valve structure length | *Minimum | ≥108mm |
| *Maximum | ≤432mm | |
| Allowable test valve flange size | *Minimum | ≥90mm |
| *Maximum | ≤275mm | |
| Distance between two sides blinds |
*Minimum | ≥95mm |
| *Maximum | ≤490mm | |
| Hydraulic system |
Range of oil pump pressure | 0-6.3MPa |
| Flow | 16L/min | |
| Hydraulic pressure increase | 3.0-31.5MPa | |
| Power |
*Voltage | 380V |
| *Frequency | 50Hz | |
| Three Phase | ||
| Motor | Rate of work | 2.2Kw |
| Number of Poles | 6P | |
| Dimensions for Reference | (L*W*H) | 1750*800*1800mm |
| Weight for Reference | N.W 1500KG | G.W 1800KG |
Test Pressure Range:
| Test DN (mm) | 15 - 65 | 80 | 100 |
| Max.Test Pressure (bar) | 480 | 240 | 160 |
We also can design different Max.test pressure as customer's request.
