Flange End Valve Test Bench
|
Previous:
Submerged Valve Test Bench
Next:

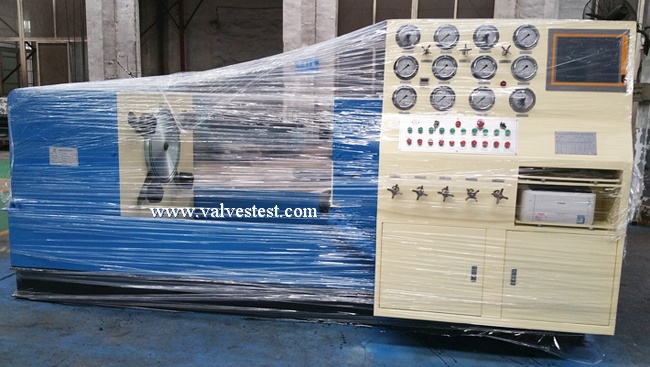

Flange End Valve Test Bench
Model: YFB-600 With Screen & Printer
Categories:
Flange End Valve Test Bench
»
Description:
Hydraulic drive clamp claws to hold blind flange at the end of valve flangee to have a performance test.
Test Pressure Range:
It is suitable for flanged end valve, just like gate valve, ball valve, check valve etc.
Test Range from DN300-600mm, test pressure up to 240 bar.
Main Technical Parameters: ( * can be designed as customer's request)
Main Technical Parameters: ( * can be designed as customer's request)
| Model | YFB-600 | |
|
Allowable test DN |
DN/mm | 300-600 |
| Allowable test valve flange size | *Minimum | ≥485mm |
| *Maximum | ≤915mm | |
| Distance between two sides blinds | *Minimum | ≥340mm |
| *Maximum | ≤1420mm | |
| Hydraulic system |
Range of oil pump pressure | 0-6.3MPa |
| Flow | 40L/min | |
| Hydraulic pressure increase | 3.0-31.5MPa | |
| Power |
*Voltage | 380V |
| *Frequency | 50Hz | |
| Three Phase | ||
| Motor | Rate of work | 5.5Kw |
| Number of Poles | 6P | |
| Dimensions for Reference | (L*W*H) | 4000*1900*1800mm |
| Weight for Reference | N.W 5800KG | G.W 6200KG |
Test Pressure Range:
| Test DN (mm) | 300 - 350 | 400 | 450 - 500 | 600 |
| Max.Test Pressure (bar) | 240 | 160 | 100 | 75 |
We also can design different Max.test pressure as customer's request.
Touch Screen Monitoring System Introduction:
Touch Screen Monitoring System Introduction:
